Assembly Instructions

Assembly of the sauna requires at least 2 adults to complete. Please read the instructions thoroughly before and during assembly to ensure proper installation of the sauna.



<1> LOCATION OF SAUNA

When you find a good location for your sauna, please notice the following.

1.  The main power cord on the sauna must be easily accessible.

2.  The location must be dry and leveled.



<2> PLACING BOTTOM PANEL

Text Box: Place the bottom panel on the floor. Make sure that the FRONT direction of your sauna room.




Text Box: Front



Text Box: Front











For Model RS-I, RS-II, RS-III                For Model RS-C
<3> CONNECTING BACK PANEL TO BOTTOM PANEL

Text Box:



Text Box:



Text Box: Attach the back panel to the bottom panel by lining up the back panel on the groove of the bottom panel. Align buckles on both panels and fasten them. (Please hold the back panel until one of the side-panel had been installed.)




For Model RS-I, RS-II, RS-III              For Model RS-C









                            Assembly Instructions

<4> INSTALLING SIDE PANELS

Install the side panels (Left & Right) to the bottom and back panels by lining up buckles and fastening them securely in place.

Text Box: 1.  Please be sure which side panel is Left Side and Right Side.
2.  Make sure that all buckles are properly secured in place on all panels.

















For Model RS-I, RS-II, RS-III                          For Model RS-C



<5>INSTALLING BENCH HEATER PANEL & PLUG BENCH HEATER CABLE



For Model RS-I, RS-II, RS-III                         For Model RS-C

                                   (Note: Place the long sitting baffle first, then place the short sitting baffle.)

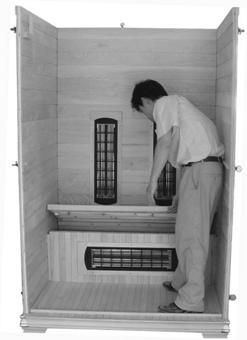

Slide down the bench heater panel by lining up its sides with the vertical guides on each side panel.

1.      The heater grill is facing outward (toward the front of the sauna).

2.      Push the bench heater panel all the way down until it is touching the bottom panel and securely

in place.

3.  Plug in the bench heater cable to the connector from the back panel.

                             Assembly Instructions

<5>INSTALLING BENCH HEATER PANEL & PLUG BENCH HEATER CABLE

Text Box: Connect the bench’s heater element wire to corresponding wire, make sure the two wires are tightly connected, otherwise, the heater will not work.










<6>INSTALLING BENCH



For Model RS-I, RS-II, RS-III                             For Model RS-C

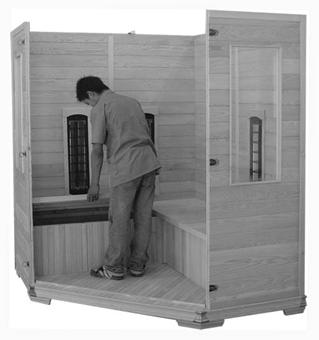

Text Box: Install the bench by sliding it over the horizontal bench guides on the side panels.
Push the bench all the way in until it can touch the back panel and is securely in place.
Make sure of the bench position, so, that the smooth and finished side of the bench are facing up and forward.



















Text Box: For better protection of your back during sauna session, please screw in the backrest on the back panel.





<7> PLACING BACKREST





              Assembly Instructions

<7> PLACING BACKREST

Text Box:
For Model RS-I, RS-II, RS-III     For Model RS-C                     Screw backrest

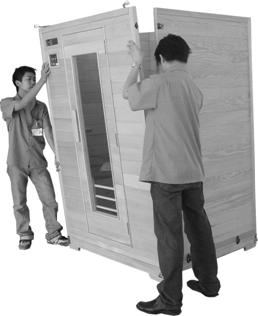

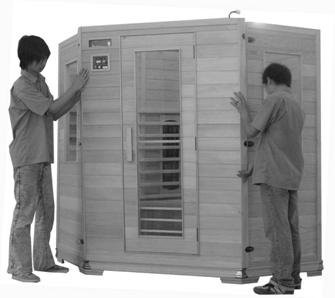

Text Box: 1.      Align the front board with side boards’ corresponding buckles, and then latch it with left and right board respectively.
2.      Pls take care of the glass door to avoid damage.




<8> CONNECTING FRONT PANEL









For Model RS-I, RS-II, RS-III                     For Model RS-C

<9> PLACING TOP PANEL

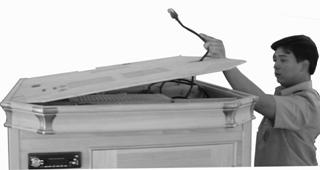

Lower the top panel onto the assembled panels.

1.      The top panel must be positioned so that the antenna and cables on the top panel are in the front left corner, right above the CD/Radio player.

                             Assembly Instructions

<9> PLACING TOP PANEL





Text Box:



























For Model RS-I, RS-II, RS-III                   For Model RS-C only















For Model RS-I, RS-II, RS-III                       For Model RS-C



Text Box: 2.      Gently place the top panel onto the rest of the assembled panels. When four corners are in place, gently push down the top panel from the outside corners until it is snugly fit over the rest of panels.
3.      Make sure the cables in the front left corner do not get pinched between the panels.
4.      Leading the wires of heaters onto the board through the corresponding hole.




<10>INSTALLING THE CD PLAYER

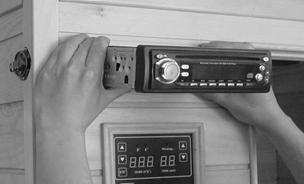

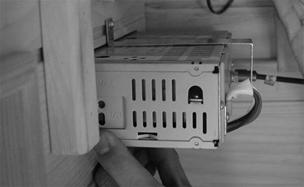

1.  Slide CD-player through slot in front wall. See Pic. 1.

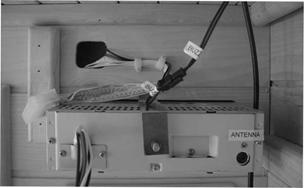

2.  Bolt “Z” shaped bracket to stud on back of CD-player so that the two holes in the bracket are on top of CD-player. Use screws provided to attach to front wall. See Pic. 2.

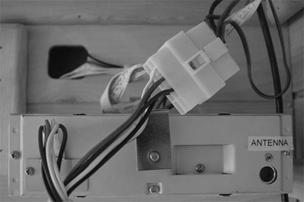

3.  Connect the wires marked “Buzzer”. See Pic. 3.

4.  Connect the wires marked “CTRL” . See Pic. 4

5.  Connect the wires of the CD. See Pic. 5

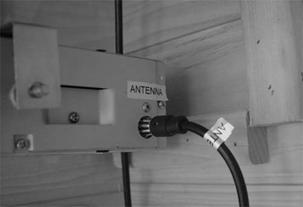

6.  Plug the antenna cable into the back of the CD. See Pic. 6.



Pic 1                                      Pic 2



Pic 3                                    Pic 4



Pic 5                                    Pic 6



<11> COVERING THE CD BOX

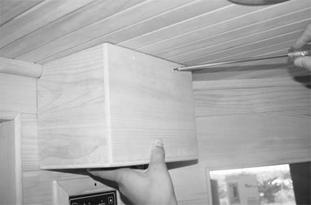

Text Box: In order to protect the CD player, please cover the CD box with screws on front panel and left side panel. Be sure all the cables are covered.


                            Assembly Instructions
<12> SCREWING TOWEL RACK (OPTIONAL)

Text Box: Screwing the towel rack onto the wooden door.

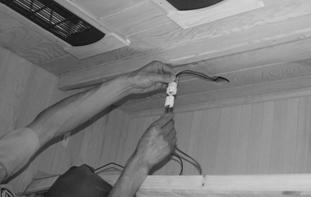

Text Box: 1.  Connect the right front corner heater wires.
2.  Connect the left front corner heater wires.
3.  Connect the back heater wires.
4. Check to be sure that all connections to the control box are secure.

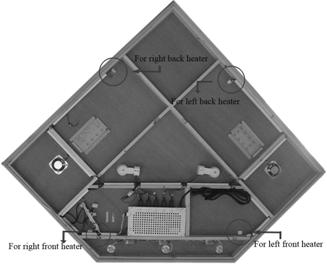

<13> THE MAIN POWER CONNECTION ON THE TOP PANEL













     For Model RS-I, RS-II, RS-III                           For Model RS-C



<14> PUT ON THE TOP PROTECTION COVER

Gently position the top cover onto the top panel, pull out the plug and secure in place with the screws provided.





<15> ENJOY YOUR SAUNA!

Plug in the main power cord into the wall outlet and power up your sauna. Pop in your favorite CD in the CD player of the sauna, grab some towels, a glass of water and step into your sauna and enjoy the benefits of the sauna!!
